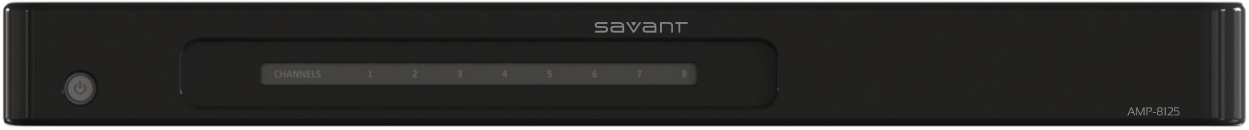

Savant® 8 Channel Digital Audio Amplifier

At a Glance

Ideal for speakers that demand more power. This digital amplifier can maximize the audio experience in multi-room distributed audio applications—offering eight channels of 125-watt amplification at 8 ohms in a one-rack space metal enclosure.

Proposition 65 Warning for California Residents

As the first home automation company to embrace mobile technology, we understood early that the customer experience could extend beyond the home and open new possibilities for control.

Over the years, our technology has evolved and our company has grown, but our goal remains the same. We've become the home automation brand of choice for the world's most luxurious homes, castles, and even yachts.

Savant's premium home automation systems offer personalization features that make the difference between a smart home and a Savant Home.

Ideal for speakers that demand more power. This digital amplifier can maximize the audio experience in multi-room distributed audio applications—offering eight channels of 125-watt amplification at 8 ohms in a one-rack space metal enclosure.

Optional rack ears included

Front panel LEDs indicate fault status

Quiet, convection-cooled fanless design

Supports Audio Sense, Voltage Trigger, and Manual modes

Standby Mode power consumption under 0.5W

Environmental

Temperature: 32° to 95° F (0° to 35° C)

Humidity: 10% to 80% Relative Humidity (non-condensing)

Cooling: 34 cubic feet per minute (CFM) recommended

BTUs: 650 BTUs per hour

Power

Input Power: 100-240V AC, 50/60 Hz

Nominal Power: 190 watts

Operating Parameters

Output Power: 125W RMS/channel@8 ohms from 20Hz - 20kHz (all channels driven)

Frequency Response: 20Hz - 20kHz +0dB/-1.5dB

Total Harmonic Distortion (THD): 105dB ref: full power (a-weighted)

Crosstalk: < -70dB @ 1kHz

Crosstalk: < -70dB @ 1kHz

Input Sensitivity: 1.12 volts for 125 watts out in 8 ohms

Gain: 29dB

Input Impedance: 100K ohms (typical)

12V DC Trigger Signal: Current = 0.12 mA

Compliance

Safety and Emissions: FCC Part 15 | CE | CAN/CSA | C-Tick

RoHS Compliant

Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity.
