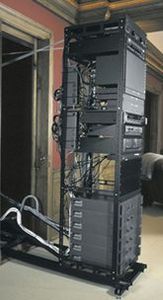

Middle Atlantic Products® AXS Series 21 RU 20" Deep Rack

Model #: AXS-21

$1,410.30

At a Glance

Specify an AXS when installing audio and video equipment flush into a wall or cabinet; ideal for larger systems. The patented pull-out design provides access to rear equipment connections. Entire bays of equipment can be rolled out for service and installation flexibility.

WarningProposition 65 Warning for California Residents
Middle Atlantic Products® AXS Series 21 RU 20" Deep Rack

General Specs

Depth (in.)20
Width (in.)19.25
Height (in.)41.44
Weight Capacity (lbs.)650
Manufacturer WarrantyLimited Lifetime

General

FinishBlack Powder Coat
Usable Depth20
Usable Height36.75
Capacity Weight (US)650
Depth20
Height41.3
Width19.25
Rack Units21
Rackrail Type10-32
Static Load Capacity650
MaterialSteel
MountingHorizontal
RoHSYes
GreenguardYes

Middle Atlantic Products® AXS Series 21 RU 20" Deep Rack

Model #: AXS-21
203998
Model #: AXS-21
Middle Atlantic Products Inc.
$1,410.30

Available in Store Only

$1,410.30

At a Glance

Specify an AXS when installing audio and video equipment flush into a wall or cabinet; ideal for larger systems. The patented pull-out design provides access to rear equipment connections. Entire bays of equipment can be rolled out for service and installation flexibility.

Get to know this product.

Unique interlocking corner joint for exceptional strength and easy assembly

Service stand raises service tracks to bottom of AXS, allowing it to pull out

Service tracks include built-in level to save time

Removable rack frame can be integrated off-site to save time

Articulating cable carriers provide effective cable management

Standard fixed front and rear 10-32 threaded rackrail with numbered spaces

Service tracks and stands sold separately

Patented EIA compliant 19” slide-out equipment rack for millwork installation shall be Middle Atlantic Products model #AXS-21. Rack shall have 21 useable rackspaces, overall height of 41-7/16”, and a useable depth of 20”. Rough-in millwork dimensions shall have a minimum depth of 22-1/2” with a 1/2” setback, overall width of 19-1/4” and a weight capacity of 650 lbs. with proper weight distribution. Rack shall be constructed of the following materials: top, base, caster brackets, and horizontal braces shall be 13-gauge steel with black powder coat finish, rack uprights shall be 11-gauge steel rackrail with tapped 10-32 mounting holes in universal EIA spacing. Rackrail shall be finished in black e-coat with marked rackspaces, top and bottom trim panels shall be 11-gauge aluminum with a black brushed and anodized finish. Cable carrier shall be constructed of the following materials: cable carrier and lower hinges shall be constructed of 16-gauge steel, center hinge shall be constructed of 10-gauge steel and cable carrier shall be finished in a black powder coat. Rack top shall have openings to accept up to 2 fans, model # AXS-FAN (one fan) or AXS-FAN-K (two fans). Service tracks and stands shall be constructed of a 13-gauge steel frame with an aluminum extrusion. Service tracks shall be model # TRACK50 with a 50” track length and 48” rack frame extension depth. Service stand shall be model # TRACKL (for 2-1/4” - 3-1/4” mounting height off floor), TS310 (for 3”-11” mounting height off floor), TS1022 (for 10”-22” mounting height off floor) and TS1640 (for 16”- 40” mounting height off floor). Rack shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Rack shall be RoHS EU Directive 2002 / 95 / EC compliant. Rack shall be manufactured by an ISO 9001 and ISO 14001 Registered Company. Rack shall be warrantied to be free from defects in material or workmanship for a period of 3 years.

Useful Documents
Specifications

General Specs

Depth (in.)20
Width (in.)19.25
Height (in.)41.44
Weight Capacity (lbs.)650
Manufacturer WarrantyLimited Lifetime

General

FinishBlack Powder Coat
Usable Depth20
Usable Height36.75
Capacity Weight (US)650
Depth20
Height41.3
Width19.25
Rack Units21
Rackrail Type10-32
Static Load Capacity650
MaterialSteel
MountingHorizontal
RoHSYes
GreenguardYes
