Product Dimensions 31.5"h x 35.4"w x 8.25"d

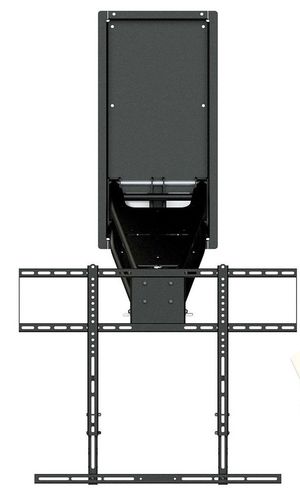

The award-winning MantelMount presents a motorized mount for high on the wall installations such as over a fireplace. Offering comfortable eye-level viewing, the fully automated MM860 Pro Series TV Mount is second to none!Read More
Fully Motorized For Up/Down Travel & Swivel
Integrate With Control Systems Or Control With Included RF Remote
Auto-Temperature Sensing & Retraction
Limited Lifetime Warranty & 100% Guarantee
Simultaneous Drop & Swivel: Patented Multi-Axis hub, proprietary software and precision electronic actuators lower and swivel the TV in one quick fluid motion.
Remote Control Choices: Controlled through the included 433 MHZ RF remote, IR-based Logitech Harmony remotes and popular home automation systems.
Home Automation Options: Works with Control4, URC, RTI, Crestron, Savant and Logitech, with command sets for hard-coding additional systems.
Power Sensing Technology: Detects when the TV is turned on and automatically lowers it to a favorite preset. Provides automation even without a control system.
Silent Operation: Two custom electronic actuators allow for smooth, barely audible movement.
Recessible Housing: Conceals the lifting arm and electronics in the raised position. Can be recessed for flush-to-wall installations.
Temperature-Sensing Monitor: TV automatically retracts to its home position when an unsafe temperature is detected.
Soft & Hard Travel Stops: Vertical and horizontal travel limits configured through both software and hardware, provide a virtual safety shield that prevents the TV from touching the wall or mantel.
Plug & Play Networking: DHCP enabled right out of the box. Easily identifiable on the network.
On-Board Web Server: For simple browser based configuration
Online Software Updates: Download the latest software and firmware updates from the internet directly to the control module.
Post-Installation Leveling: Allows for screen position refinement after the mount is installed.
General Specs | |
| TV Size's up to (in.) | 100 |
| Mount Type | Swivel |
| Mounting Location | Wall |
| Compatible Vesa Sizes | Up to 600 x 600 |
| Number Of Mounts | 1 |
| Weight Capacity (lbs.) | 125 |
| Width (in.) | 35.4 |
| Depth (in.) | 8.25 |
| Height (in.) | 31.5 |
| Product Weight (lbs.) | 90.2 |
| Manufacturer Warranty | Limited Lifetime |
