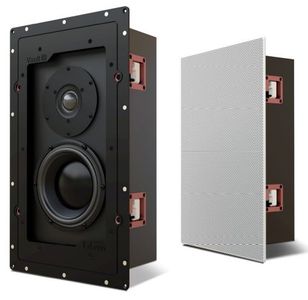

Leon® Vault Series 5" In-Wall Speaker

Product Overview

Leon’s Vault Series in-wall speakers are fully sealed and handcrafted from solid MDF to deliver uncompromising quality in both construction and performance. The reference-grade Vault vUltima speakers can be used as concealed L/C/R speakers to create high-performance home theater systems, or they can be used as rear channels to complement our Horizon™ or Profile™ Series speakers for a truly integrated sound solution.

Fully sealed and tuned enclosure constructed from 3/4″ MDF

Timbre-matched to our Horizon HzUltima and Profile PrUltima Series speakers

At only 3.75” deep, they fit easily into any standard wall

Thin framed, removable magnetic grills can be custom painted in-house to match any color swatch or paint code

Re-engineered mounting system for easy installation

Recommended Pairings: HzUltima, PrUltima, A10-UT

Specifications

Components: 5″ reference-grade woofers; 1″ reference-grade tweeters

Material: MDF Enclosure, perforated metal grill

Finish: Paintable grills (custom factory finish available)

Grill: Perforated metal

Frequency Response: 70-22kHz

Sensitivity: 88dB@2.83V/1m

Impedance: 8Ω

Recommended Power: 75-250W

Coverage: Hor: 140°; Vert: 110°

Max Output: 106 dB avg; 112 dB peak

Connections: Gold-plated binding post

Mounting: Swing out “dog-leg” system

Dimensions

Cutout 8.25″ W x 13.75″ H

Outer Dimensions: 9.75″ W x 16.25″ H

Depth: 3.75″
