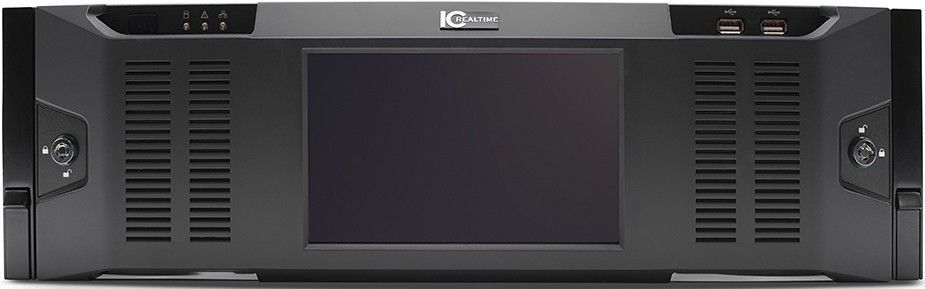

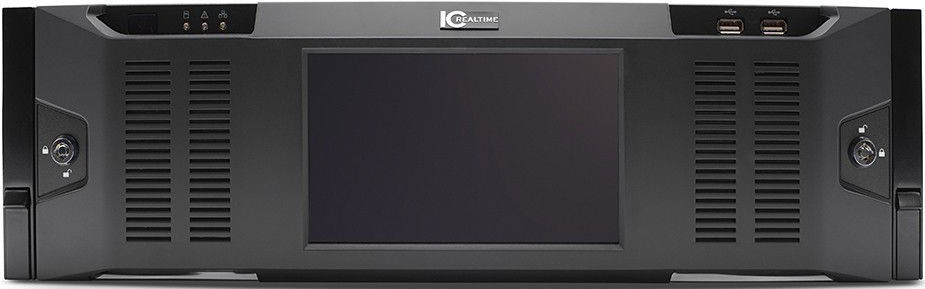

IC Realtime® Black 128 Channel Video Recorder


Model #:

NVR-EL128-4U12MP1-10TB

Model #: NVR-EL128-4U12MP1-10TB
1335568
IC Realtime
$15,024.00

At a Glance

Product Dimensions 5.2"h x 19.1"w x 20.9"d

IC Realtime's NVR-EL128-4U12MP1 offers next generation unparalleled recording technology for IP video surveillance applications. This enterprise-level, rack mountable 128 channel NVR is equipped with a powerful Intel quad core processor that supports up to 12MP cameras as well as 384 Mbps total bandwidth and up to 4K resolution display support.Read More

Available in Store Only
$15,024.00

Get to know this product.

Product Overview

Product Overview

There is only one unquestioned top gun in IC Realtime's world-class FlexSmartAi NVR lineup. With massive 384Mbps video throughput, up to 20Mbs per channel camera capacity, dual redundant power supplies, dual 4K HDMI outputs, and the capacity to hold 16 SATA-III hard drives with a total built-in storage capacity of 128TB, our new - and TAA compliant - EL128-4U12MP1 is a 128 channel video security monster.

Incomparable specs are everywhere you look with the South-Korean made EL128. Specifically designed for 3U rack mounting for convenient PoE camera switch access, EL128 handles 12MP cameras with ease, and its flexible resource allocation allows every channel's throughput to be optimized to match camera capabilities for efficient utilization of the EL128’s massive 384Mbs maximum total throughput. The unit incorporates an Intel processor and 8Gb of RAM, four 1000Mbps network interface jacks to handle maximum video traffic, is H.265 & ONVIF 2.4 / CGI compliant, has 2 USB 2.0 and 2 USB 3.0 jacks. EL128's hard drives are front-mounted in slide-in carrels behind the front panel with its built-in operations monitor screen, and it can be set up with RAID 0/1/5/10 and even has an eSATA port if it's 16 hard drives are not enough.

Of course,the EL128 can access any camera-based FlexSmartAi video detection & analytics, including tripwire, intrusion, scene change, and abandoned or missing object detection. The system even supports audio baseline detection. If the audio in a room goes from a normal range to loud & violent, the system can take a snapshot, send an email, or engage an annunciator or alarm device if set to do so.

Your security & privacy are paramount to IC Realtime, so to ensure device & network security, all IC Realtime cameras & recorders are protected from cyber threats by multiple layers of authorizations & password protections. All network traffic is encrypted in both directions to a point where our gear now meets the newest network UL CAP certification standards.

No text description can do justice to this massive South Korean-made video security powerhouse. Simply put, IC Realtime's EL128-4U12MP1 is the world's largest and most capable TAA compliant network video recorder.

Useful Documents
Specifications

General Specs

Depth (in.)20.9
Width (in.)19.1
Height (in.)5.2
Hard Drive Capacity160TB
Ethernet Port4
Voltage100-240
Number of Drives16
Color Finish NameBlack
Smart CompatibleYes
Wattage51
Product Weight (lbs.)43.2
WarningProposition 65 Warning for California Residents
