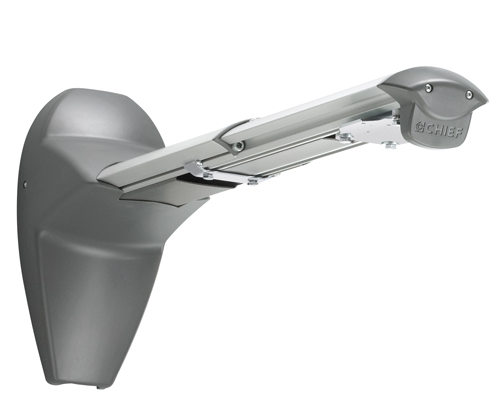

Chief® Silver Manufacturing Medium Short Throw Wall Mount

Model #: WM120S

$189.60

At a Glance

The WM120S provides ideal placement and alignment for short throw and ultra short throw projector mounting on a single stud.

WarningProposition 65 Warning for California Residents
Chief® Silver Manufacturing Medium Short Throw Wall Mount

General Specs

Depth (in.)34.2
Height (in.)14.2
Weight Capacity (lbs.)50
Mounting LocationWall

General

AdjustmentsRoll: 0°, Pitch: 3°, Yaw: 0°
CertificationsUL Listed
ColorSilver
Extension16.0" - 29"
Overall Dimensions (H x W x D)14.2" x 7.3" x 34.2" (360 x 185 x 869 mm)
Shipping Weight19.15 lbs (8.69 kg)
Solution TypeUniversal
Weight Capacity50 lbs (22.7 kg)

Chief® Silver Manufacturing Medium Short Throw Wall Mount

Model #: WM120S
98722
Model #: WM120S
Chief
$189.60

Available in Store Only

$189.60

At a Glance

The WM120S provides ideal placement and alignment for short throw and ultra short throw projector mounting on a single stud.

Get to know this product.

Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts (must order mount separately)

Also supports wall-mounted long-throw projectors

Fast installation with innovative quick-connect system

Industry-first micro height and leveling adjustment

Extension from wall, 16-28.50" (406-724 mm)

Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)

Integrated cable management system conceals and protects cables for a clean finish

Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)

Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts

Includes short throw arm only, projector mount must be ordered separately

Includes hardware for wood stud, steel stud and concrete wall construction

Useful Documents
Specifications

General Specs

Depth (in.)34.2
Height (in.)14.2
Weight Capacity (lbs.)50
Mounting LocationWall

General

AdjustmentsRoll: 0°, Pitch: 3°, Yaw: 0°
CertificationsUL Listed
ColorSilver
Extension16.0" - 29"
Overall Dimensions (H x W x D)14.2" x 7.3" x 34.2" (360 x 185 x 869 mm)
Shipping Weight19.15 lbs (8.69 kg)
Solution TypeUniversal
Weight Capacity50 lbs (22.7 kg)
